Where is the voltage regulator located?
Sarah Smith updates
.
Also question is, where is a voltage regulator?

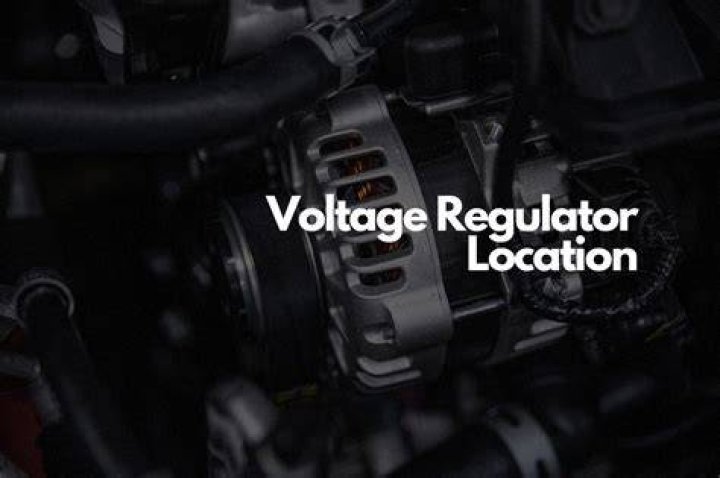

The voltage regulator is located inside the alternator. When the voltage regulator fails the entire alternator is usually replaced.
Similarly, how do you check a voltage regulator? Method 1 Testing a Vehicle's Voltage Regulator with a Multimeter
- Purchase a multimeter.
- Open the hood of your vehicle.
- Set the multimeter to voltage.
- Attach the clamps on your multimeter to the battery terminals.
- Read the numerals on the display.
- Put your vehicle in park and turn it on.
- Rev the vehicle's engine.
Keeping this in view, what are the symptoms of a bad voltage regulator?
Symptoms of a Bad or Failing Instrument Voltage Regulator
- Dim or flickering gauges. One of the first symptoms of an issue with the voltage regulator is dim or flickering gauges.
- Inaccurate or erratic readings. Another symptom of an issue with the voltage regulator is inaccurate or erratic readings from the voltage regulator.
- Inoperable instrument cluster.
Can a bad voltage regulator drain the battery?
A leaky diode also can allow current to drain out of the battery through the alternator when the vehicle is not being driven. A faulty voltage regulator can also cause charging problems. Some older vehicles have external voltage regulators, whereas many late-model vehicles use the PCM to control charging output.
Related Question Answers
Is a voltage regulator necessary?
Voltage regulator, any electrical or electronic device that maintains the voltage of a power source within acceptable limits. The voltage regulator is needed to keep voltages within the prescribed range that can be tolerated by the electrical equipment using that voltage.What is the purpose of voltage regulator?
A voltage regulator is used to regulate voltage levels. When a steady, reliable voltage is needed, then the voltage regulator is the preferred device. It generates a fixed output voltage that remains constant for any changes in an input voltage or load conditions.What is meant by voltage regulator?
A voltage regulator is a system designed to automatically maintain a constant voltage level. A voltage regulator may use a simple feed-forward design or may include negative feedback. It may use an electromechanical mechanism, or electronic components.How do you change a voltage regulator?
How to Change a Voltage Regulator- Use a wrench to detach the cables from the battery.
- Locate the voltage regulator.
- Position the new regulator over the old for remote regulators, inline with the battery cable and not attached to the alternator and unplug each cable from the old regulator and plug it into the new regulator.
How does a voltage regulator work?
A voltage regulator generates a fixed output voltage of a preset magnitude that remains constant regardless of changes to its input voltage or load conditions. It compares the output voltage with a precise reference voltage and adjusts the pass device to maintain a constant output voltage.What is the difference between voltage stabilizer and voltage regulator?
If there is any difference between the two voltages, the voltage regulator will automatically compensate to provide the right output. A voltage stabilizer is basically a voltage regulator that is used in homes to output a constant voltage even if the backend power supply fluctuates for any reason.What is a positive voltage regulator?
A positive adjustable voltage regulator produces a regulated positive voltage that can be adjusted. Most regulators are fixed (not adjustable). A negative adjustable voltage regulator produces a regulated negative voltage that can be adjusted. Again, most are fixed. LDO means low drop out.What causes voltage regulator failure?
They usually fail because they're under rated for the constant current draw. Running the motor with the battery disconnected - or even a poor contact on the battery terminals - can also blow them. This is because the ignition circuits produce spikes of around 400V, which the battery sinks.What happens if voltage regulator fails?
A damaged or failed voltage regulator can rapidly diminish the alternator's ability to cycle power from the battery. This may cause the vehicle to experience dimming or pulsating external systems, such as headlights and dashboard elements.Can you drive with a bad voltage regulator?
A bad voltage regulator can even affect your car's engine. For example, as this car part stops working properly, you might notice your car's engine sputters or stalls once in a while. It might also have trouble accelerating as you drive.How much is a voltage regulator?
The average cost for an alternator voltage regulator replacement is between $345 and $386. Labor costs are estimated between $155 and $196 while parts are priced at $190. Estimate does not include taxes and fees.What voltage is overcharging?
The voltage should be somewhere between 12.8V and 14.7V. Anything higher than 14.7V indicates overcharging in the battery.How do I adjust my external voltage regulator?
ADJUSTMENT- Remove the regulator from the vehicle and place on a clean work surface.
- If the points are pitted, clean them carefully with fine emery paper.
- Check and adjust the core gap first and then the point gap.
- Adjust the core gap by loosening the screws attaching the contact set to the yoke.
How do you test a voltage regulator with an ohm meter?
How to Use an Ohm Meter to Check a Voltage Regulator- Turn the dial on your ohm meter to 20 if it has an ohms scale or to the ohm symbol if it has different setting options on the dial.
- Start your vehicle.
- Open the hood of your vehicle so you can access the battery.
How do you hook up a voltage regulator to a generator?
There are three wires that must be connected to the correct regulator terminal.- Weld the regulator mount to the tractor frame.
- Attach the regulator to the mount.
- Connect the positive battery cable wire -- usually red -- to the regulator.
- Polarize the generator or alternator through the regulator.
