What does a circulator do on a boiler?
Matthew Sanders news

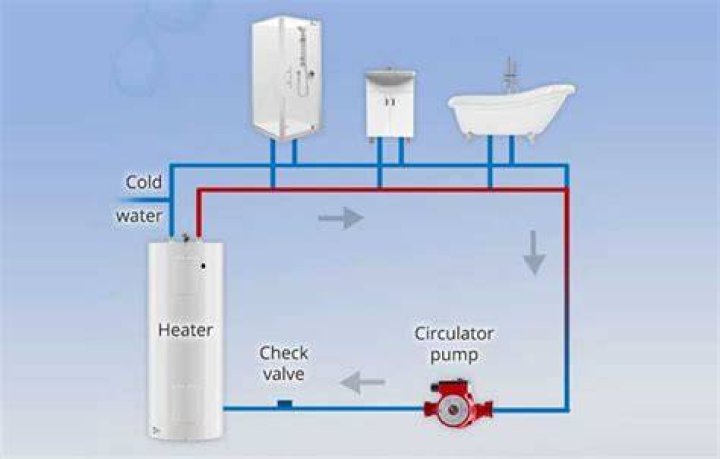

Heating circulator pumps or "zone circulators" are used to force hot water from the heating boiler through radianting devices such as hot water baseboards or radiators. The circulator is switched on as needed or in some designs may be wired to run continuously.
.
Accordingly, how much does it cost to replace a boiler circulator pump?
Replacing a failed circulator pump can cost as little as $400 or as much as $750 or more for the parts and labor at the time of publication. Cost of just the circulator pump itself falls in the range of $100 to $300 depending on the model your system needs.
Subsequently, question is, what is a taco cartridge circulator used for? The Taco 007 Residential Water Circulator Pump is designed for use in hydronic heating, chilled fresh water systems, and domestic water systems. The Taco 007-F5 pump is typically used in Residential Hydronic Heating Systems.
Likewise, where do you put the circulator pump on a boiler?
Typically heating systems using zone valves will have two or more zone valves (usually but not always located close to the heating boiler) and a single circulator pump (usually located on the return end of the hot water piping close to the heating boiler).
How long do circulator pumps last?
10 years
Related Question Answers
How long does it take to change a boiler pump?
30 to 90 minutes
How long do boilers last?
15 years
How do you troubleshoot a circulator pump?
To troubleshoot the circulator pump, you will first need to make sure that the boiler is already hot (if not, it is a thermostat problem), but the hot water is not being moved out of the tank. Wait until the boiler temperature reaches the required level at which the pump should cut in, and then check the device.What is a circulator pump used for?
A circulator pump or circulating pump is a specific type of pump used to circulate gases, liquids, or slurries in a closed circuit. They are commonly found circulating water in a hydronic heating or cooling system. Large pumps are usually pad-mounted.What happens if the central heating pump fails?
No power in the pump – There could be a problem with the fuse or the central heating wiring. If the pump body has corroded, it will start to leak water. The only solution is to have the pump replaced. Propeller is jammed: This happens due to debris in the central heating system.How much does it cost to fix a boiler?
The cost of boiler repair can vary depending on the extent of the fault or damage. You can expect to pay anything from £150 for a minor repair such as a replacement fan, gas valve or printed circuit board or closer to £400 for more serious work, such as a replacing a heat exchanger.What is the difference between a pump and a circulator?
There's a big difference between the two. One area of concern for hydronics folk is the use of the term “pump” versus “circulator.” Visually, they are one and the same. Technically speaking, they both create a pressure differential for the purposes of moving a liquid. This is the function of a true pump.Do circulator pumps run all the time?
The effects of an always-on circulator assembly installation are more even heat and in some cases perhaps improved freeze-resistance for the heating system piping. So depending on where you live and how your heating system is designed and controlled, it may be normal for the circulator pump(s) to run continuously.Why does my circulator pump make noise?
Your boiler circulating pump is what moves the heated water from the boiler into your home's radiators and back to the boiler again. But sometimes, if the circulating pump is set too fast for your home's setup, it will cause vibrations within the system that sound like a loud humming noise.Can water flow through a circulator pump that is off?
An inactive circulator pump does not block water, so water could flow through it, in whatever direction the pressure drives the flow. In this case, if Pump A is "on" and Pump B is "off": Pump A creates a high-pressure area in front of it (orange).How does a circulator pump work?
A circulating pump works by pumping or circulating liquids, gases or slurries in a loop or closed circuit. Their most common application is circulating water in a hydronic cooling or heating system. Since the materials that they pump move around in closed circuits, they do not expend lot of energy.Should my circulator pump be hot?
A: Circulator pumps are generally used to circulate hot water. The temperature of the pumped medium is transferred to the pump, and it is normal for the pump's surface to be warm or even hot. B: The pump's rotor may have become blocked by worn bearings or dirt. Replace the pump and clean the system.Can Grundfos Pumps be repaired?
Minimise future breakdowns with Grundfos Repair ServicesServicing your pumps with Grundfos original spare parts will keep them running efficiently, reliably and with fewer surprises. Grundfos guarantees that obsolete products can be serviced for at least 10 years after production has been discontinued.Is the pump on the flow or return?
If you have multiple zones and the zone valves are on the supply, then the pump can go either on the return or the supply. Pumps "pump" because they create a lower pressure on their suction side, and a higher pressure on their discharge side, and flow is created. The higher pressure will always seek the lower pressure.How do you size a circulator pump?
1 GPM = 10,000 BTU/hr, meaning that for every 10,000 BTU's of heat load the circulator must output a 1 gallon per minute flow. Assuming that system calls for 100,000 BTU/hr, a circulator pump should have a minimum 10 Gallons Per Minute flow rate at a given pressure drop.How do you test a central heating pump?
How to check if a central heating pump is working?- Step 1: Find the Pump.
- Step 2: Visibly inspect the pump for damage.
- Step 3: Turn off the power supply.
- Step 4: Loosen the silver plate.
- Step 5: Remove the silver plate.
- Step 6: Check if the pump shaft has seized.
- Step 7: Turn the power back on.
- Step 8: Bleed the system.
How do you replace a central heating circulating pump?
How to Replace a Central Heating Pump – A DIY Guide to Replacing a Central Heating Pump- The heating pump is powered by electricity.
- Disconnect Electrical Wires.
- Turn off Inlet and Outlet Valves.
- Disconnect the Old Pump and Remove.
- Insert new Pump and Connect up.
- Re-Connect the Electrical Connections.
- Test the New Pump.
What is a primary loop?
Primary Loop Piping is commonly used in boiler heating systems that run needing multiple temperatures or contstant temperature at the hydronic boiler is required. Primary Loop Piping allows non condensing boilers to maintain a heat level in the boiler high enough to allow the boiler to run at its most efficient state.How do you know if you have a bad circulator pump?
First Things to Check in Diagnosing a Bad Circulator Pump- The heating boiler must be turned on and able to run.
- The thermostat must be set up to call for heat.
- In response to the thermostat you should hear the heating boiler turn on and run;
