How do you reinforce a leaning retaining wall?
Sarah Scott .

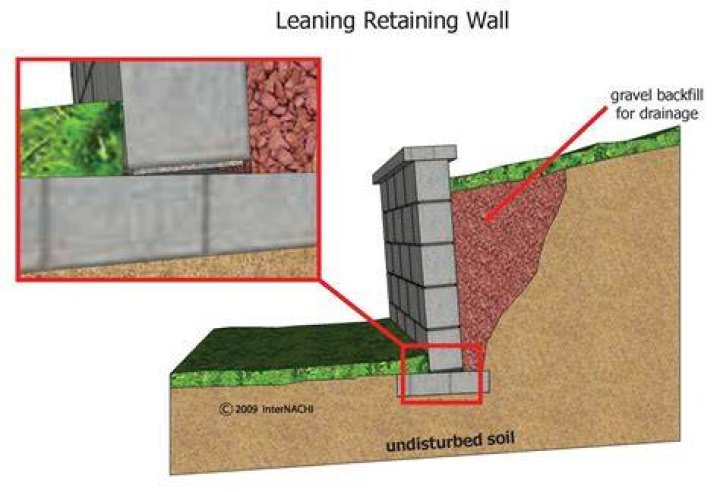

Hereof, why is my retaining wall leaning?
Pressure from the soil behind retaining walls may cause them to tilt or lean. Older retaining walls tend to be more prone to leaning than newer ones because “Mother Nature” and age works their magic over time. Walls that are not constructed or engineered properly also tend to tilt over time.
Also Know, can a leaning retaining wall be repaired? Fixing a Leaning or Bowing Retaining Wall If the wall is higher than 1-2 feet, then hiring a structural engineer to inspect the wall is essential. Once a professional determines the cause for the leaning or bowing, the issue can be resolved — often without completely demolishing the wall.
Similarly, you may ask, how do you fix a collapsed stone retaining wall?
To repair the damage, remove stones from the damaged area and at least two stones wider. Dig a 6- to 8-inch trench where you have removed the stones. Fill the trench with gravel a little at a time and tamp it as you go. Rebuild the section of wall.
How long do retaining walls last?
A concrete retaining wall can be expected to last anywhere from 50 to 100 years. Meanwhile, a brick masonry wall can be expected to last at least 100 years, though the quality of the work will play a role here.
Related Question Answers
What is surcharge in retaining wall?
Surcharge loads acting on retaining wall are additional vertical loads that used to the backfill soil above the top of the wall. Live load surcharge is considered when vehicular actions act on the surface of backfill soil at a distance which equal or less than the wall height from the wall back face.How much does it cost to repair retaining wall?
Whether it's poor construction or oversaturated soil, you must account for retaining wall repair costs down the line. According to estimates, most retaining wall repairs cost between $200 and $800.Do I need drainage behind retaining wall?
When drainage goes unaddressed hydrostatic pressure will build up behind the wall and cause damage such as bulging or cracking. There are a number of ways to ensure proper drainage of water from behind a retaining wall. And third, is to ask if weep holes will be needed to allow water to drain through the wall.What is the least expensive way to build a retaining wall?
In order of price, these are some costs for retaining wall materials:- Treated pine and is the least expensive material.
- Hardwood is more expensive than treated pine.
- Concrete sleepers are more expensive.
- Besser blocks are relatively expensive to have installed.
- Interlocking concrete blocks come in a variety of prices.
How do you stop a retaining wall from failing?
Following are the methods to prevent failure and distress in retaining walls:- Redeem surface drainage problems.
- Reduce retaining wall height.
- Use tie backs.
- Extend the footing.
- Remove and replace backfill materials.
- Reinforce the front of the wall.
- Add a key.
- Use cantilevered soldier beams.
Do you need landscape fabric behind retaining wall?
Poor drainage resulting in saturated soil and frost heaving is the main cause of failure. That's why all good retaining walls begin with landscape fabric, backfill, and 4-inch perforated drainpipe. The depth you need to excavate depends on frost depth as well as the wall and soil type.What do you mean by retaining wall?
A retaining wall is a structure that holds or retains soil behind it. There are many types of materials that can be used to create retaining walls like concrete blocks, poured concrete, treated timbers, rocks or boulders. Some are easy to use, others have a shorter life span, but all can retain soil.What is a Deadman in a retaining wall?
A “deadman” helps anchor a timber wall in place when building a retaining wall. The same pressure that's pushing against the wall is pushing and holding the deadman—and therefore the wall—in place.What materials can be used for a retaining wall?
B.10 Retaining Wall Materials- Concrete Blocks. Concrete blocks are a very modern and sophisticated material.
- Stone veneer. Stone veneer is a protective material that can be used as a decorative covering for vertical walls and surfaces.
- Poured Concrete. Need a landscaping service?
- Brick.
- Wood.
- Boulders.
- Gabion.
- Timber.
How do you build a retaining wall around a tree?
How to Create a Retaining Wall Around a Tree- Attach a piece of string the length that you want the wall away from the tree base to a large nail.
- Dig a level circle around your tree between three and six feet in diameter.
- Place crushed or pea gravel at the base of the ring to a depth of about one inch.
What is the strongest type of retaining wall?
Poured concrete is the strongest and most durable choice for retaining walls. It may also be carved and formed to look like mortared stone depending on your taste.Do I need geogrid for retaining wall?
When grid is needed depends on the wall building material but also the soils being retained. Once the retaining wall is over 6′ in height, if it isn't being built from 24″+ wide limestone outcroppings or similarly sized, dense material, geogrid is required.Do I need a footer for a retaining wall?
A concrete footing serves as the foundation of many construction projects. If you plan to use brick, cinder block or stone that will include the use of mortar, then a concrete footing is recommended. If you are building a segmental retaining wall, then you will not need a footing.How much base do I need for a retaining wall?
We recommend 3/4” Crushed Gravel. Do NOT use pea gravel. Thoroughly compact and level the gravel to create your leveling pad. NOTE: If grade changes along base of the wall, create a stepped leveling pad as required.How do you build a retaining wall step by step?
Follow these steps to properly install a retaining wall.- Dig a level-bottomed trench wide enough for the base stones to fit into. Compact the bottom of the trench with a hand tamper.
- Lay landscape fabric in the trench.
- Start the wall's second layer using a staggered pattern.
- Make sure the wall is level.
